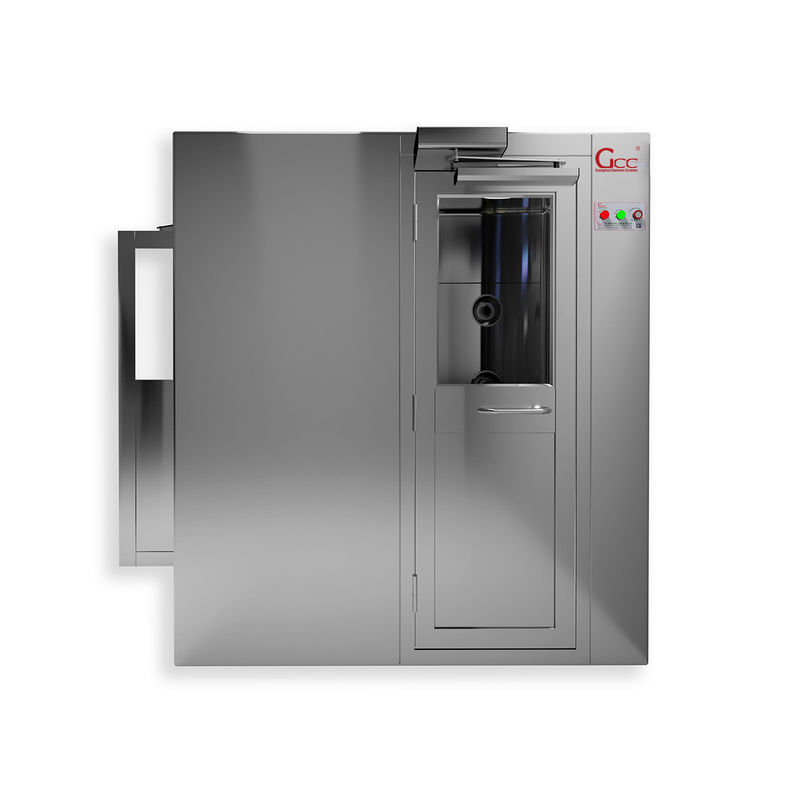

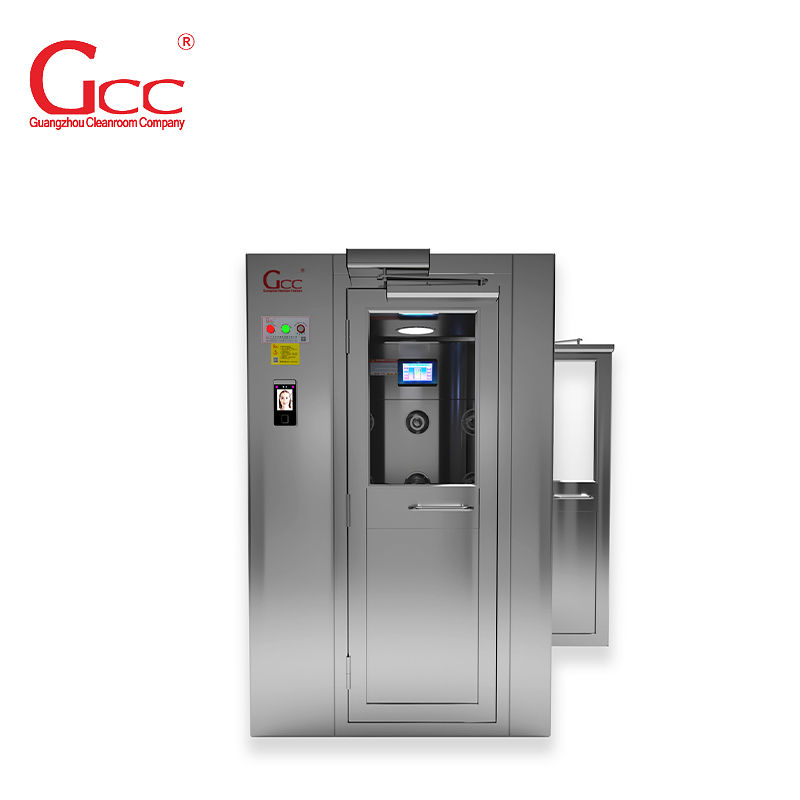

G3 ประสิทธิภาพของแผ่นเหล็กสี Cleanroom Air Shower

Cleanrooms are required to adhere to strict regulatory guidelines to prevent contamination. Generally, people wear Coveralls or other protective gear before entering a cleanroom to prevent outside contaminants from, but that isn’t always enough. As contaminants are easily transported by people and objects, which could cause issues in some cleanroom environments. Therefore, cleanroom air showers have become a vital component in maintaining the cleanliness of cleanrooms and other clean-critical environments. Cleanroom air showers are enclosed chambers placed at the entry and exit points of a cleanroom or other controlled environment. Cleanroom air showers use high-velocity jets of air and HEPA or ULPA air filter systems to make air at velocities of 3,000 to 7,000 feet-per-minute (FPM), continuously streams from the jet nozzles for 30–45 seconds that remove loose contaminants from people and products when they pass it. Particle-laden, contaminated air is routed out of the shower compartment through floor vents and returned to the filtration unit. This process can filter the particles in the air and keep the cleanliness.

1. Special ultra thin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.
2. Electronic interlocking door, automatically blow and shower.
3. Duration for showering can be adjusted from 0 second to 99 seconds with time display. It is easy to operate with button touch switches.
4. Floor and nozzles are made of quality stainless steel.
5. Efficiency can reach 99.99%@0.3μm with pre filter and hepa filter.
6. Air velocity can up to 25m/s. professional and fast design, non-standard products.

• Material
• Intercom
• Ultraviolet sterilizing lamp/yellow light
• Buzzer
• Door
• Size

Manufacturing Plant, Food & Beverage Factory
